Made by a pilot for pilots, the “Formation Lead” Throttle Grip with PTT and SMOKE is manufactured in the USA by Swearingen 3D works of Marion IA., packaged in the USA and distributed by the designer. Everything you order is prepared just for you, only after you order. Upon order, your configuration options are checked and incorporated, final assembly completed, and continuity checks performed to assure the value and performance I have designed for you.

It was originally custom designed and manufactured for a Rocket formation leader (with RV-8 Throttle quadrant) for the purpose of providing an overlay to the existing one (1) inch throttle handle and with electrics and system wiring required to provide PTT and SMOKE. It is now available to the experimental public using the same design with a fully operational and wired PTT momentary and SMOKE rocker switch.

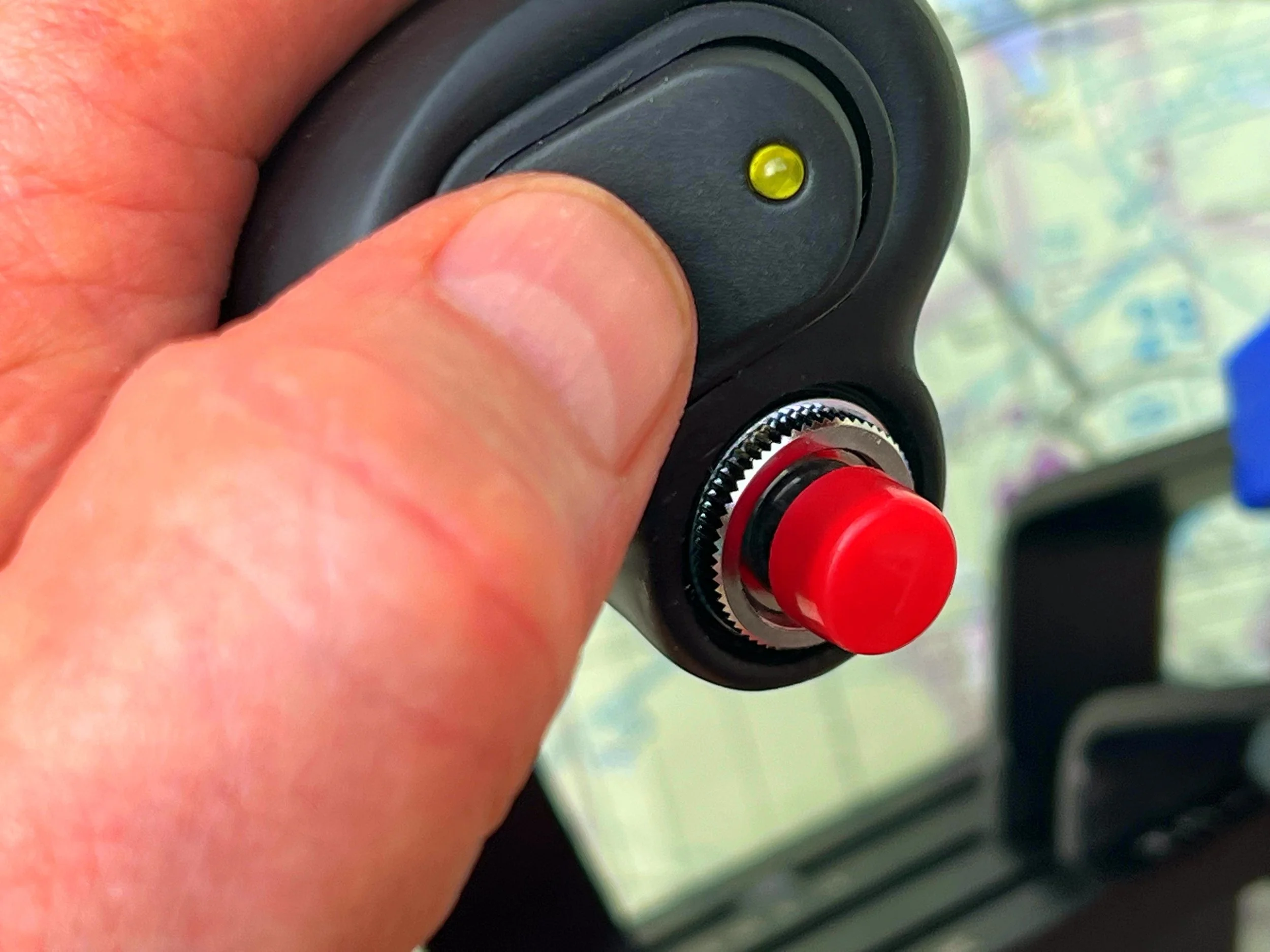

The throttle grip consists of a 4.33 inch 3D printed universal throttle overlay, ergonomically shaped to comfortably rest within the left hand, incorporating palm and finger cutouts. The grip is sized to adequately clear the prop lever and handle, still retaining the throttle ergonomics of the original VANs CT-83F Deluxe or CT-84F Deluxe throttle quadrant. The push-to-talk (PTT) and SMOKE rocker switches are contained within the inboard fence of the grip, and both operated by the pad of the left-hand thumb. You additionally have the option to choose the switch orientation of the SMOKE rocker switch. FWD is standard, AFT is the option.

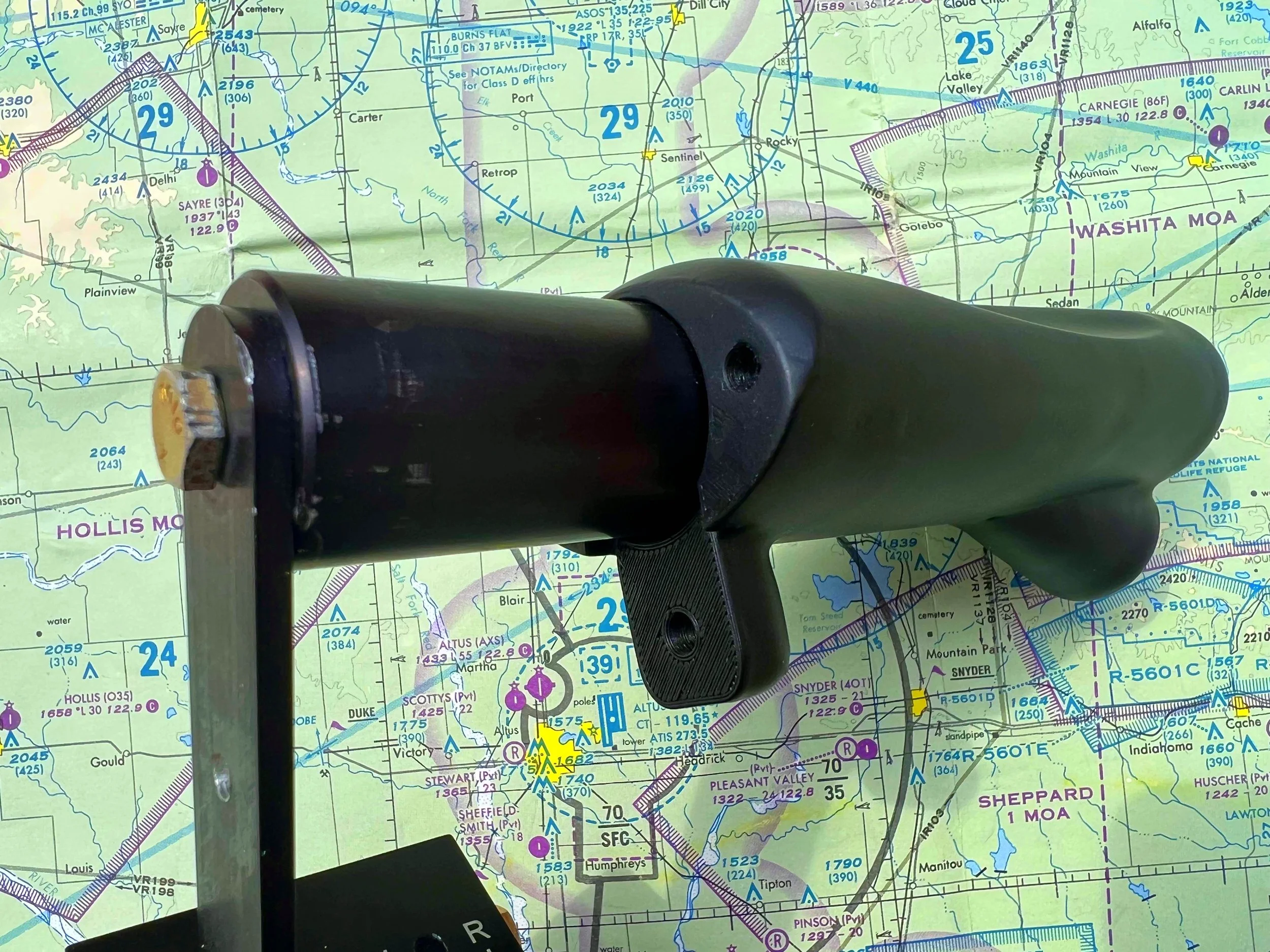

This is a throttle grip that provides an interface fit by slipping over your existing RV-8/8A deluxe two or three lever throttle or similar with a 1 inch diameter. It comes complete with a functionally tested and wired PTT and SMOKE switches. (RV-8 Deluxe Throttle quadrant shown in pictures, not included in sale)

FEATURES

• Grip Size: 4.33 in width, 1.96 in length

• Compatible with 1.0 Inch circular control stick tube. Internal Throttle stop at 2.5 in to prevent intrusion into the electronics.

• Weight: 2.43 oz.

• The "Formation Lead” control grip, made from tough ecologically friendly, 3D printer PLA, is sculptured to fit the left palm and fingers.

• Final Finish: Military Flat Black Urethane

• Anti-Rotation Cutout © embodied within the outboard portion of the overlay to prevent rotation of the grip on the stock throttle body.

• Throttle Stake added to allow mechanical fastening of overlay to throttle structure to prevent inboard overlay movement on internal throttle. Mechanical fastener included.

•  Throttle Grip contains a push-to-talk (PTT) switch, rated as follows:

        Voltage Rating: 12Vdc

           Current Rating: 5A

       Switch Type: SPST - NO,  Off-MOM On

          Tested Life: 10,000 cycles

           Temperature Rating: -20C to 80C

 PTT cover comes standard in red. Black is also available as an option.

• Throttle Grip contains SMOKE rocker switch and LED, rated as follows:

Voltage Rating : 12Vdc

Current Rating 16A (The wire bundle is limited to 5A)

Switch Type: SPST - OFF-ON

Tested Life: 10,000 cycles

Temperature Rating: -20C to 80C

The switch LED, indicates that the switch is switched to SMOKE and applying 12VDC to the Smoke system pump.

• SMOKE rocker switch orientation comes standard in a horizontal ON/FWD configuration. Switch orientation ON/AFT is also available as an option.

• PTT switch and SMOKE rocker switch are mounted on inboard end of grip, wired with two separate 20 inch 22 AWG, Shielded TEFZEL, two and three conductor, functionally tested wire harnesses. Surrounded by a supplied battery tube (heat shrinkable), one harness proceeds down the front of the throttle lever, the other down the aft and all down through the throttle bezel and forward to systems.

• Color System Schematic and instructions included for your cockpit installation.

• Condition: Mint, ready to install and function.

• Terms and Conditions approval required prior to purchase

• Non-Smoker Manufacturing Facility

• Shown within the pictures is the Throttle Grip installed on the VANs Deluxe RV-8/8A throttle quadrant. This sale is for the throttle grip and electronics only and is not sold with the throttle quadrant.

If a Right Hand “reverse image” grip is required, the same configuration can be arranged at the same price via the contact page.

If you have any questions about this product, please ask.
