Made by a pilot for pilots, the “Leather Evolution Throttle” consists of a PTT and cable within a power lever covered with full grain, Mercedes upholstery grade leather.

It is manufactured in the USA by Swearingen 3D works of Marion IA., packaged in the USA and distributed by the designer. Everything you order is prepared just for you, only after you order. Upon order, your configuration options are checked and incorporated, final assembly completed, and continuity checks performed to assure the value and performance I have designed for you.

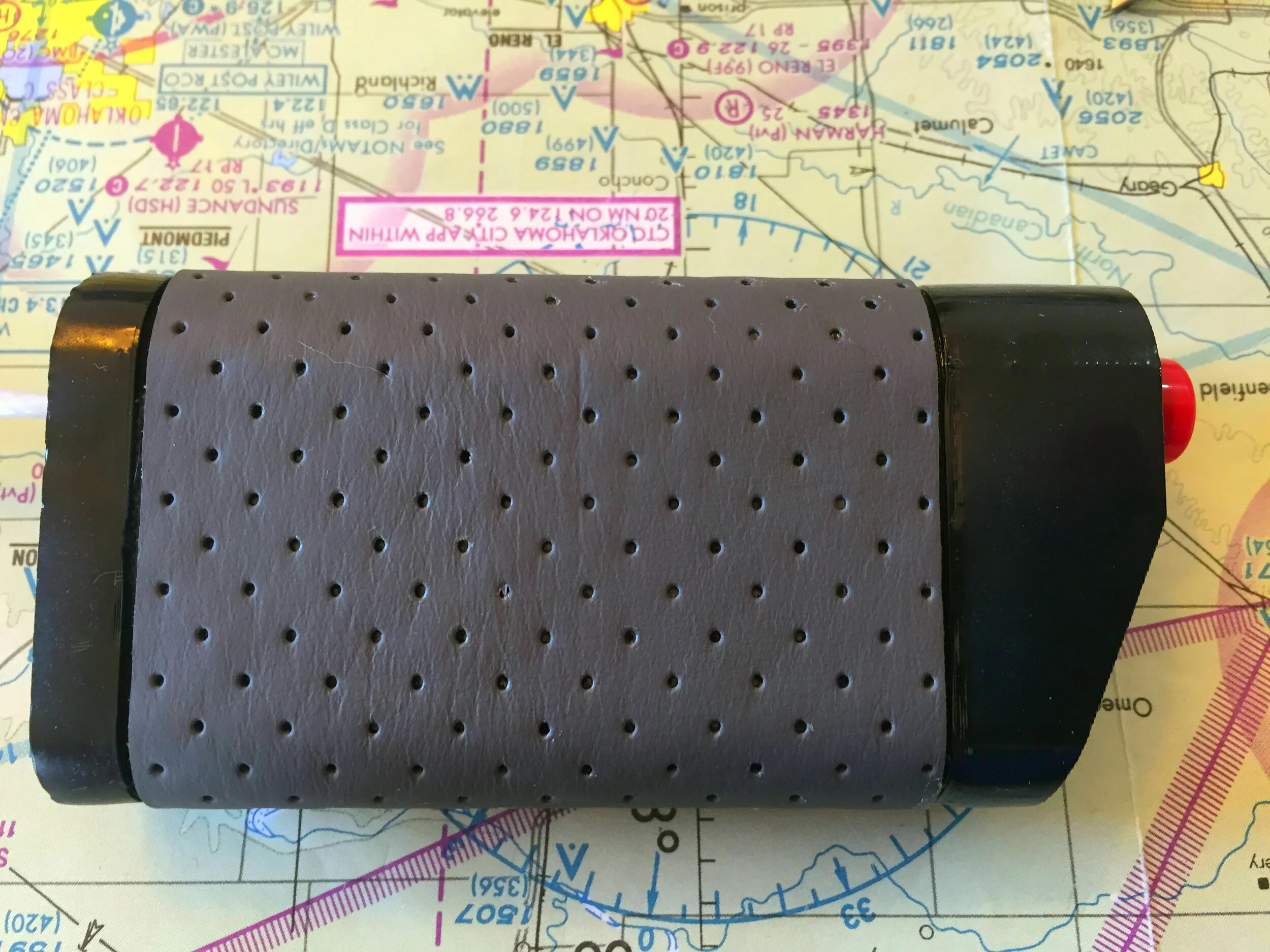

The power lever grip consists of a 3.6 inch 3D printed power lever (PL), designed for an RV-4 driver using an upside down airfoil cross section, and covered in fine Aniline Napa leather.

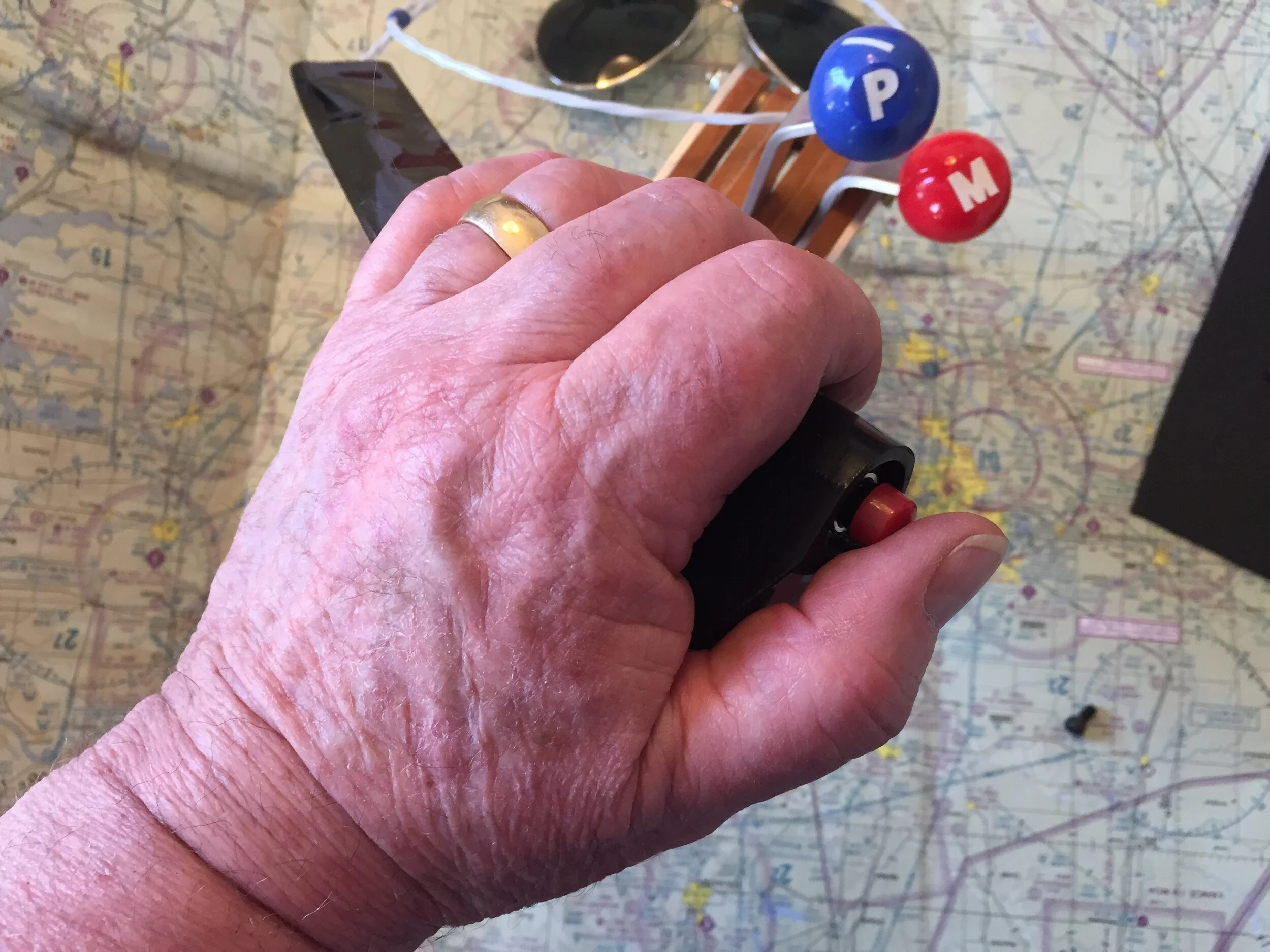

Compatible with the VANs RV-3, -4, and -8 /8A throttle quadrants CT-42F, CT-43F and CT- 82F, 83F and 81R (as pictured), the “Leather Evolution Throttle” is sized to adequately clear the existing PROP or MIXTURE lever while still retaining the throttle ergonomics of the original VANs throttle quadrant. The PTT switch is contained within the PL, and is operated by the pad of the left-hand thumb.

This is the “Leather Evolution Throttle” that provides a remove and replace option to your CT series of VANs throttle quadrant throttle ball. It comes complete with a functionally tested and wired PTT switch. (RV-4 CT-43F Throttle quadrant and PROP and MIXTURE knobs shown in pictures, not included in sale).

The red MIXTURE and PROP knobs are sold separately within the SHOP area of this website.

FEATURES

• LEATHER EVOLUTION “POWER LEVER”

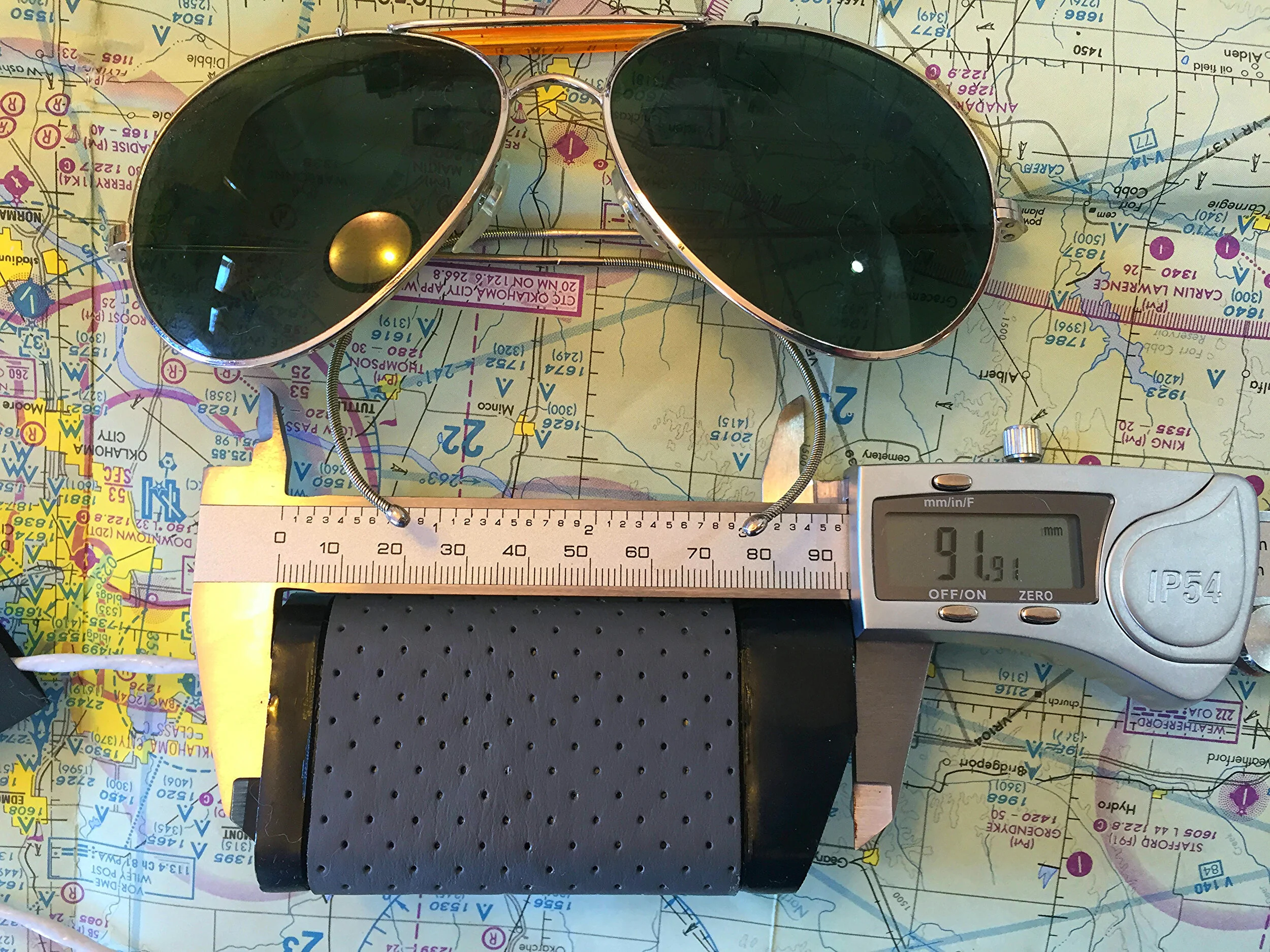

  • Size: 3.6 in width (outbd/inbd), 1.9 in. length (fwd/aft)

  • Compatible with 0.61 Inch width throttle quadrant levers.

  • Weight: 49 g.

  • The power lever is made from tough , heat durable, BLACK PLA, each end covered in gloss urethane.

  • The power lever is covered in fine hand stitched Aniline Napa leather for your hand grip with options in grey or black leather.

  • 4mm attaching fastener included to stake Power Lever to quadrant lever.

• PTT Switch

  Voltage Rating: 12Vdc

           Current Rating: 5A

       Switch Type: SPST - NO,  Off-MOM On

          Tested Life: 10,000 cycles

           Temperature Rating: -20C to 80C

 The switch is mounted within the PL, wired and provided with 20 inches of 22 AWG, Shielded TEFZEL, two conductor, functionally tested 2.9mm wire harness.

30mm heat shrink tubing included to mount wire harness to front edge of throttle lever.

• Color schematic and instructions included for your cockpit installation.

• Condition: Mint, ready to plug and play.

• Terms and Conditions approval required prior to purchase

• Non-Smoker Manufacturing Facility

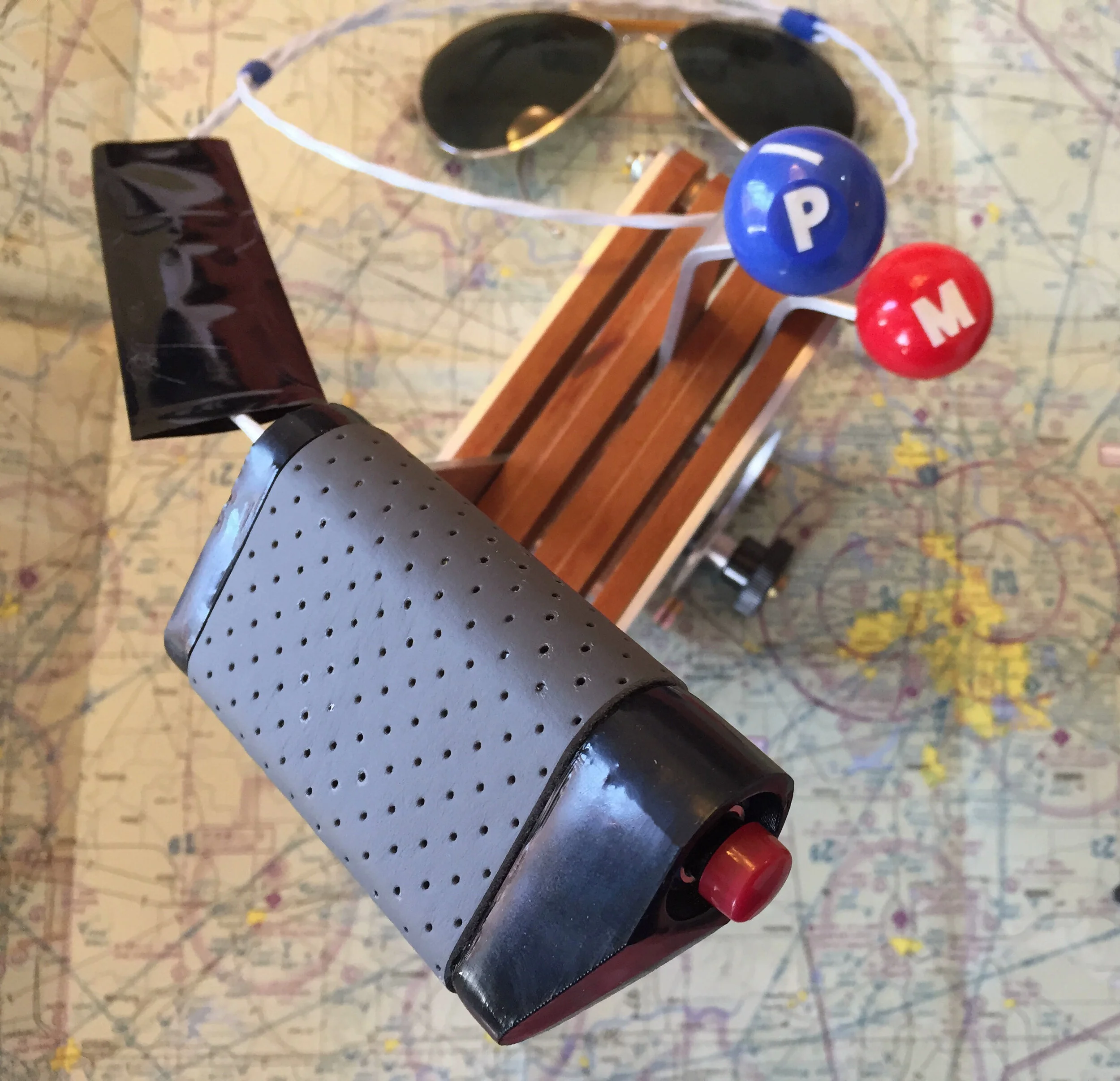

Shown within the pictures is the ““Leather Evolution Throttle” installed on the VANs RV-4 CT-43F throttle quadrant. This sale is for the throttle and electronics only and is not sold with the throttle quadrant or the PROP or MIXTURE Knob. The PROP and MIXTURE knobs can be purchased separately on this site.

If a Right Hand “reverse image” power lever is required, the same configuration can be arranged at the same price via the contact page.

If you have any questions about this product, please ask.
