"P-47 Thunderbolt" Throttle Configuration, SMOKE & PTT
"P-47 Thunderbolt" Throttle Configuration, SMOKE & PTT
Made by a pilot for pilots, the “P-47 Thunderbolt” Throttle Grip with SMOKE & PTT is manufactured in the USA by Swearingen 3D works of Marion IA., packaged in the USA and distributed by the designer. Everything you order is prepared just for you, only after you order. Upon order, your configuration options are checked and incorporated, final assembly completed, and continuity checks performed to assure the value and performance I have designed for you.

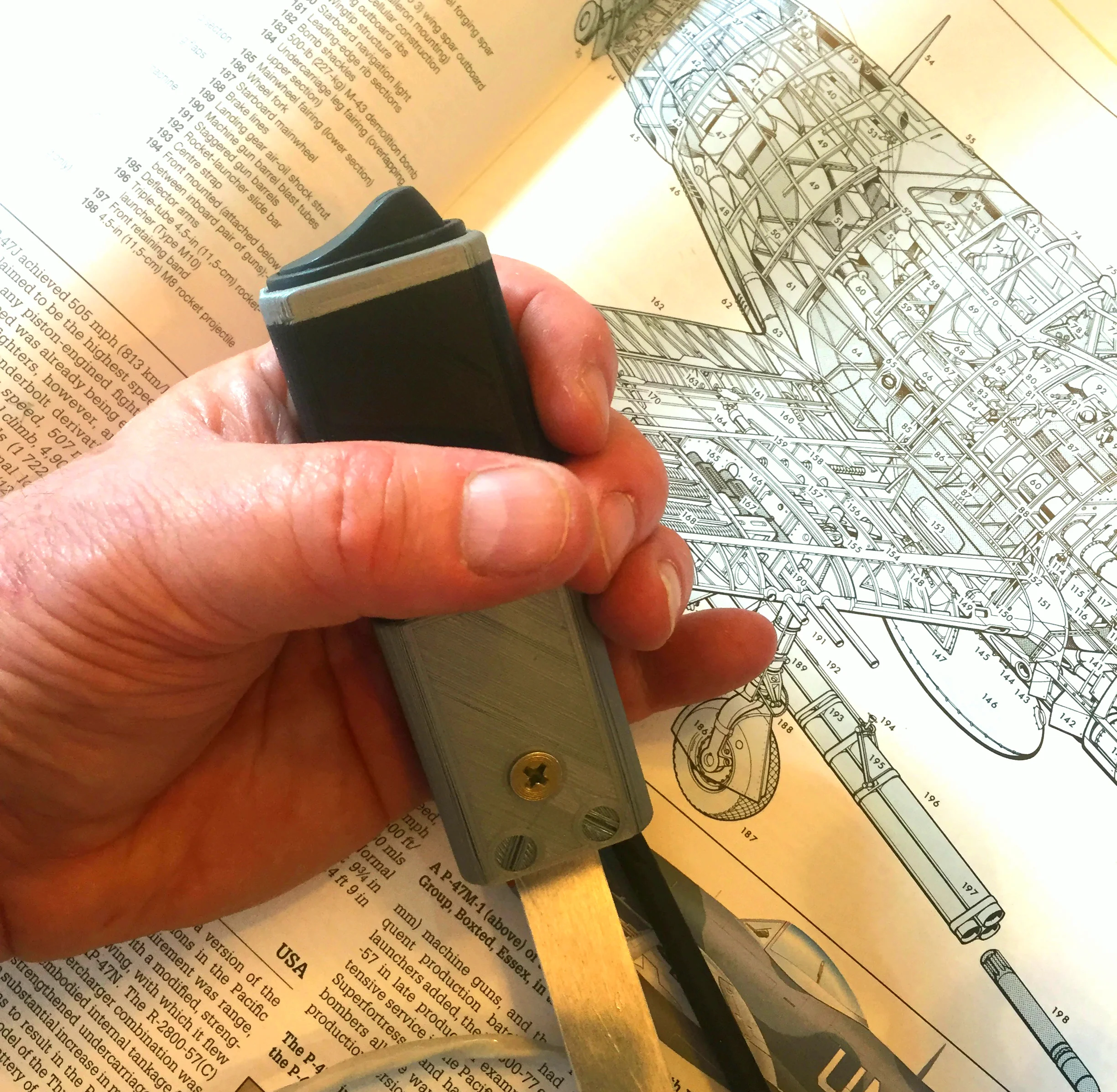

The throttle grip consists of a 4.12 inch 3D printed P-47 throttle stick grip, scaled from Republic engineering plans. The throttle grip has been made to be compatible with the VANs RV-3, -4, and -8 /8A throttle quadrants CT-42F, CT-43F and CT- 82F, 83F and 81R (as pictured). The throttle grip is sized to adequately clear the PROP lever and ball, while still retaining the throttle ergonomics of the original VANs throttle quadrant. The push-to-talk (PTT) and SMOKE rocker switches are contained within the throttle grip, and are both operated by the pad of the left-hand thumb. You additionally have the option to choose the switch orientation of the SMOKE rocker switch. FWD is standard, AFT is a no-cost option.
This is a throttle grip that provides a remove and replace option to your CT series of VANs throttle quadrants. It comes complete with a functionally tested and wired PTT and SMOKE switches. (RV-4 CT-43F Throttle quadrant shown in pictures, not included in sale).
Both the Mixture and Prop spheres are sold separately and function as options to your purchase of the P-47 Grip.
FEATURES

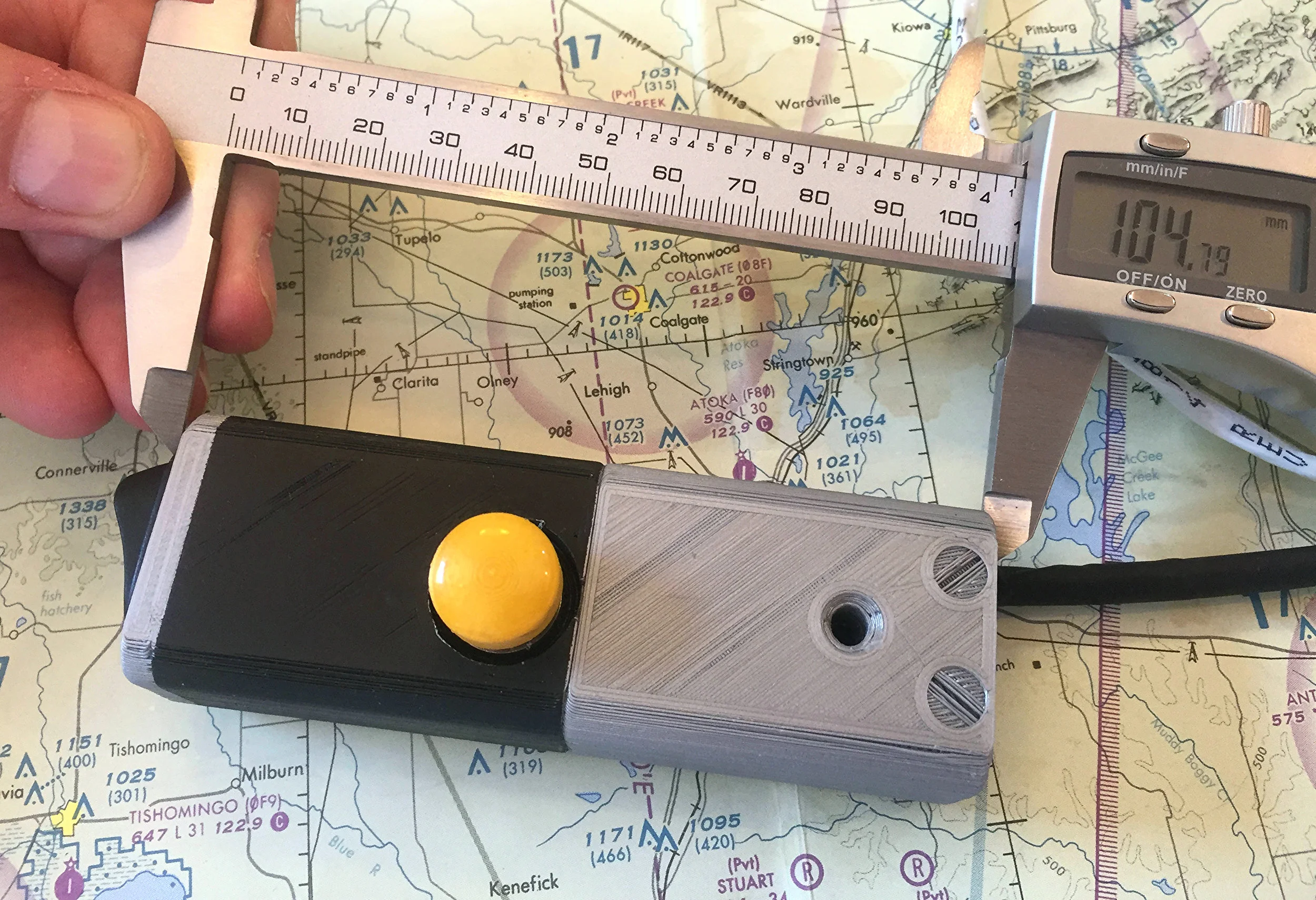

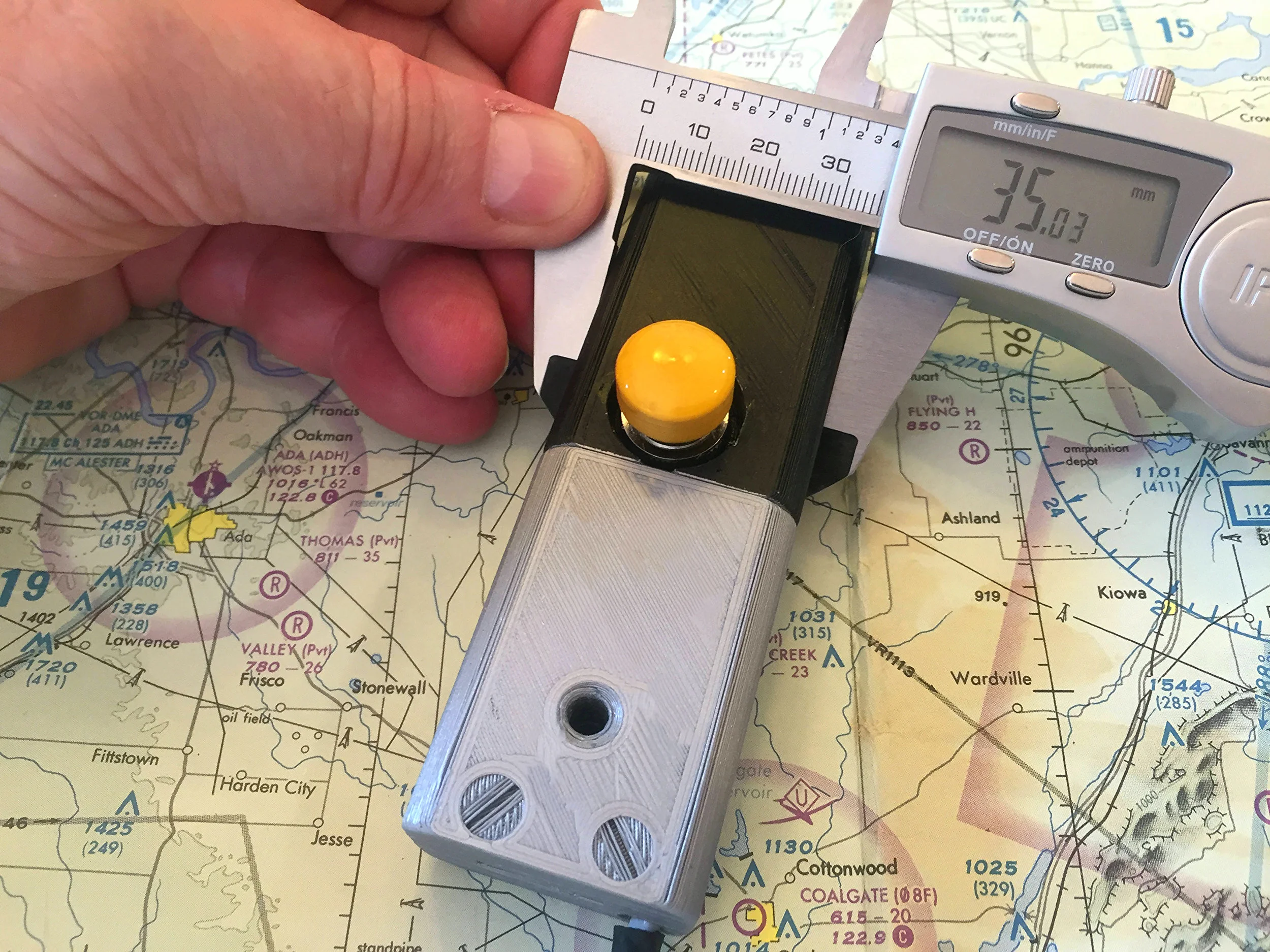

P-47 Throttle Stick Grip Size: 4.12 in height, 1.38 in width

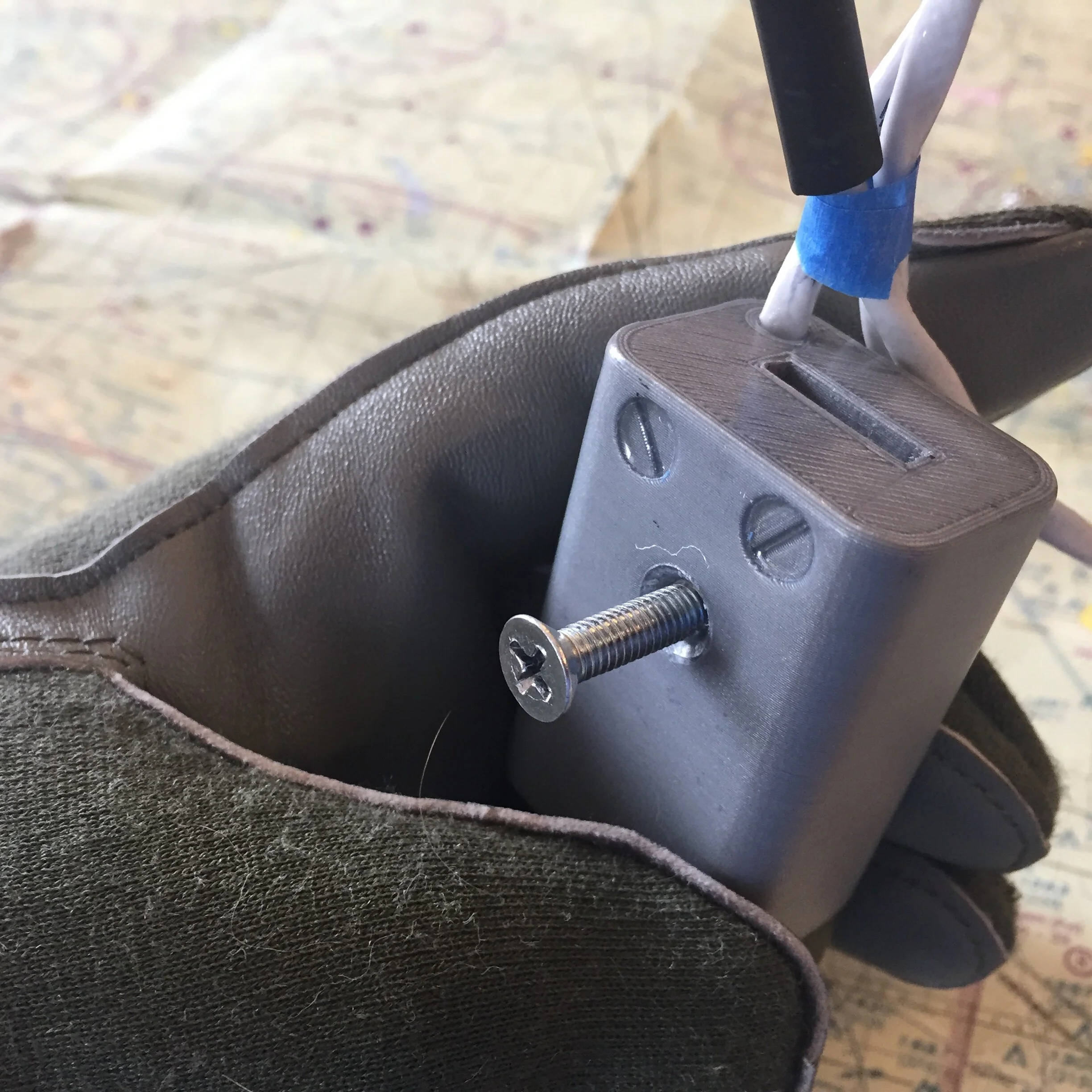

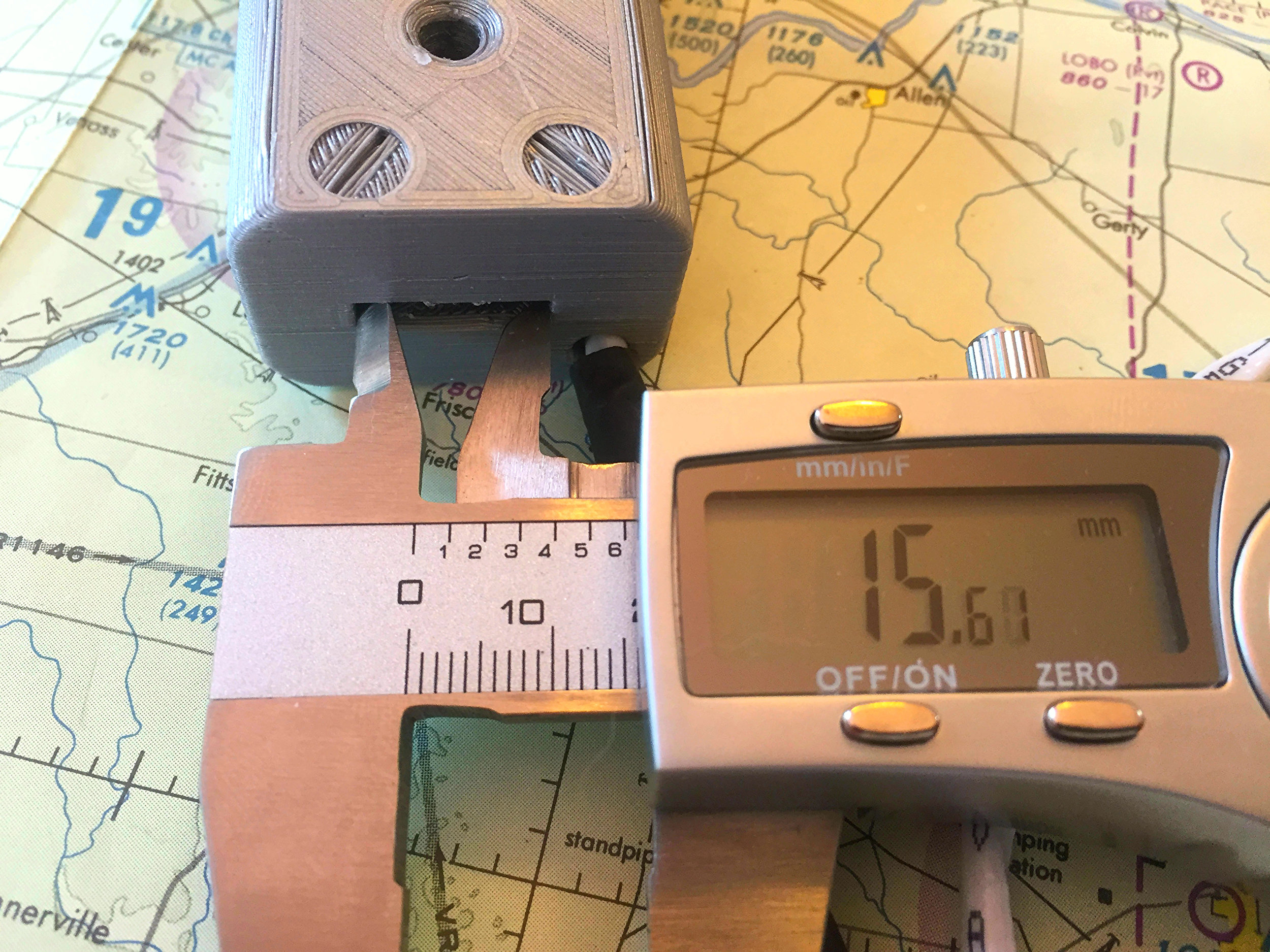

Compatible with 0.61 Inch width throttle quadrant levers. Internal Throttle stop to prevent intrusion into the electronics. Attaching hardware supplied.similar to your existing VANs throttle ball hardware
Weight : 70.8 gm..
The "P-47 Thunderbolt" throttle grip is made from tough and heat durable, 3D printer PETG, finished in Military Flat Black and Silver.
Available Option: Caution Band (Yellow/Black) at bottom of throttle.
Throttle Grip contains a push-to-talk (PTT) switch, rated as follows:
Voltage Rating: 12Vdc
Current Rating: 5A
Switch Type: SPST - Off- On(MOM)
Tested Life: 10,000 cycles
Temperature Rating: -20C to 80C
PTT cover comes standard in yellow.

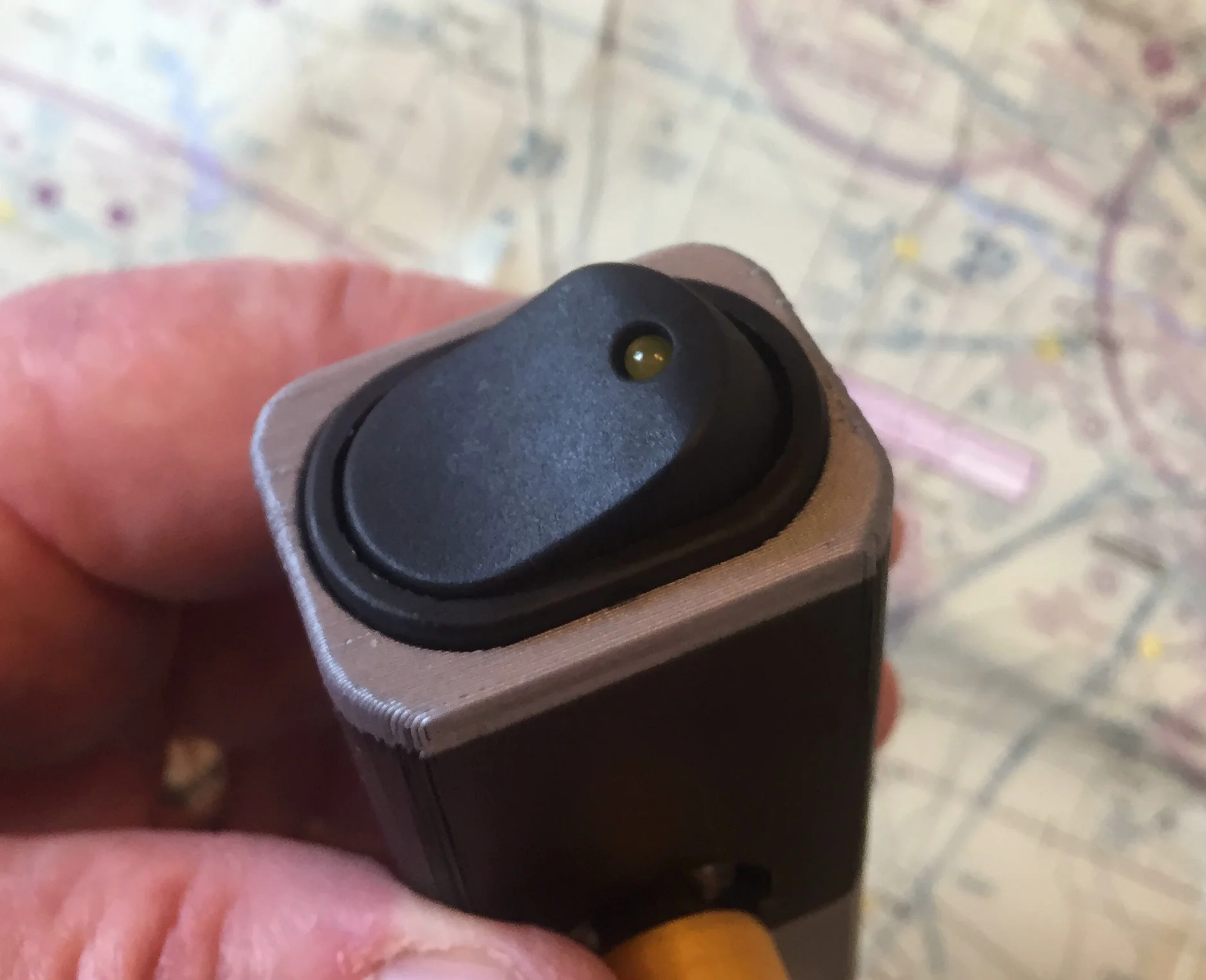

Throttle Grip contains SMOKE rocker switch and LED, rated as follows:
Voltage Rating : 12Vdc
Current Rating 16A (The wire bundle is limited to 5A)
Switch Type: SPST - OFF-ON
Tested Life: 10,000 cycles
Temperature Rating: -20C to 80C
The switch LED, indicates that the switch is switched to SMOKE and applying 12VDC to the Smoke system pump.
SMOKE rocker switch orientation comes standard in a ON/FWD configuration. Switch orientation ON/AFT is also available as an option.
PTT switch and SMOKE rocker switch are mounted within the Throttle grip, wired and provided with 20 inches of 22 AWG, Shielded TEFZEL, five conductor, functionally tested, 4.13mm OD wire harness.

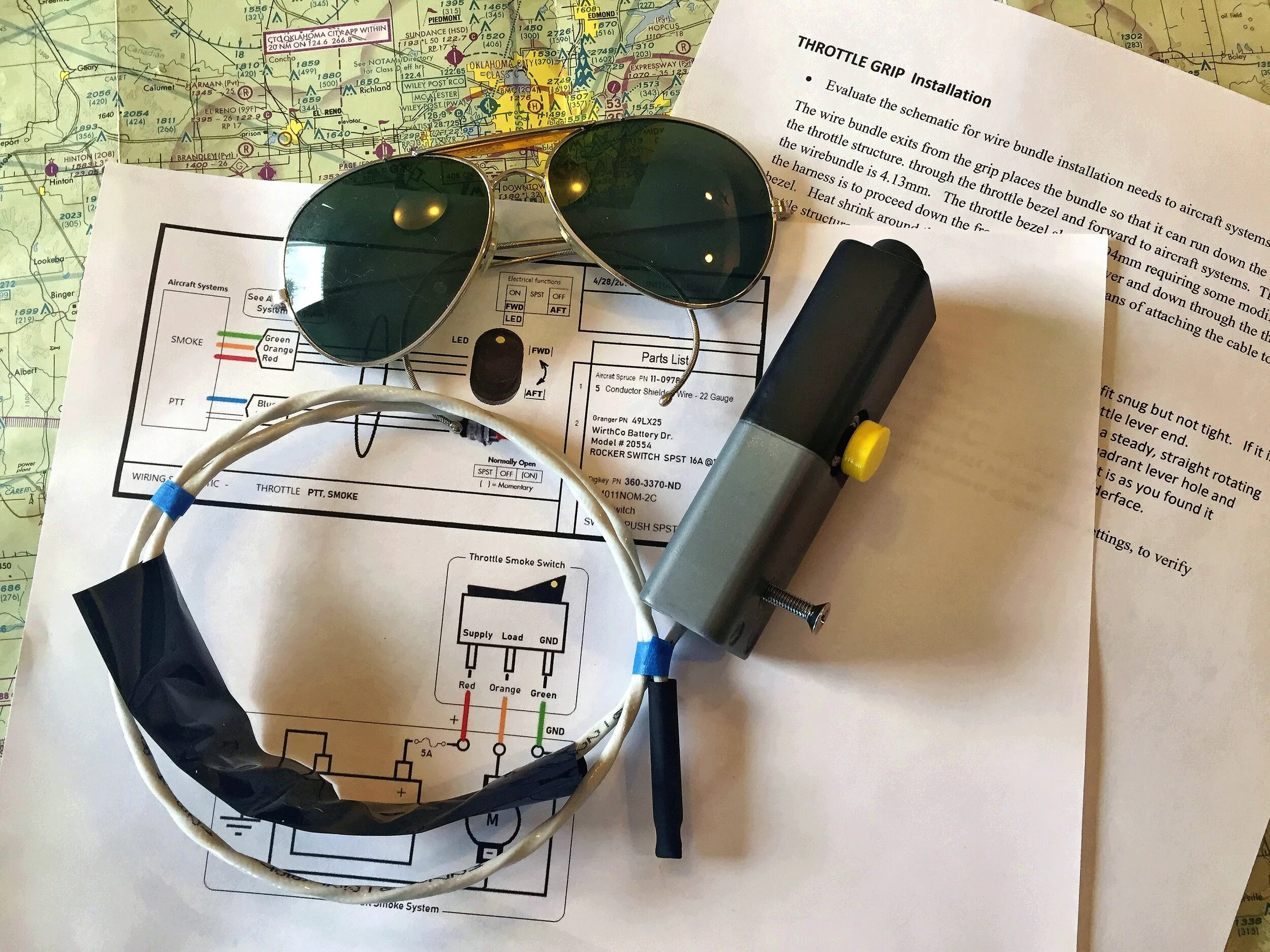

Color System Schematic and instructions included for your cockpit installation.
Condition: Mint, functionally tested and ready to Install.
Terms and Conditions approval required prior to purchase
Non-Smoker Manufacturing Facility
Combined Shipping with any additional items.

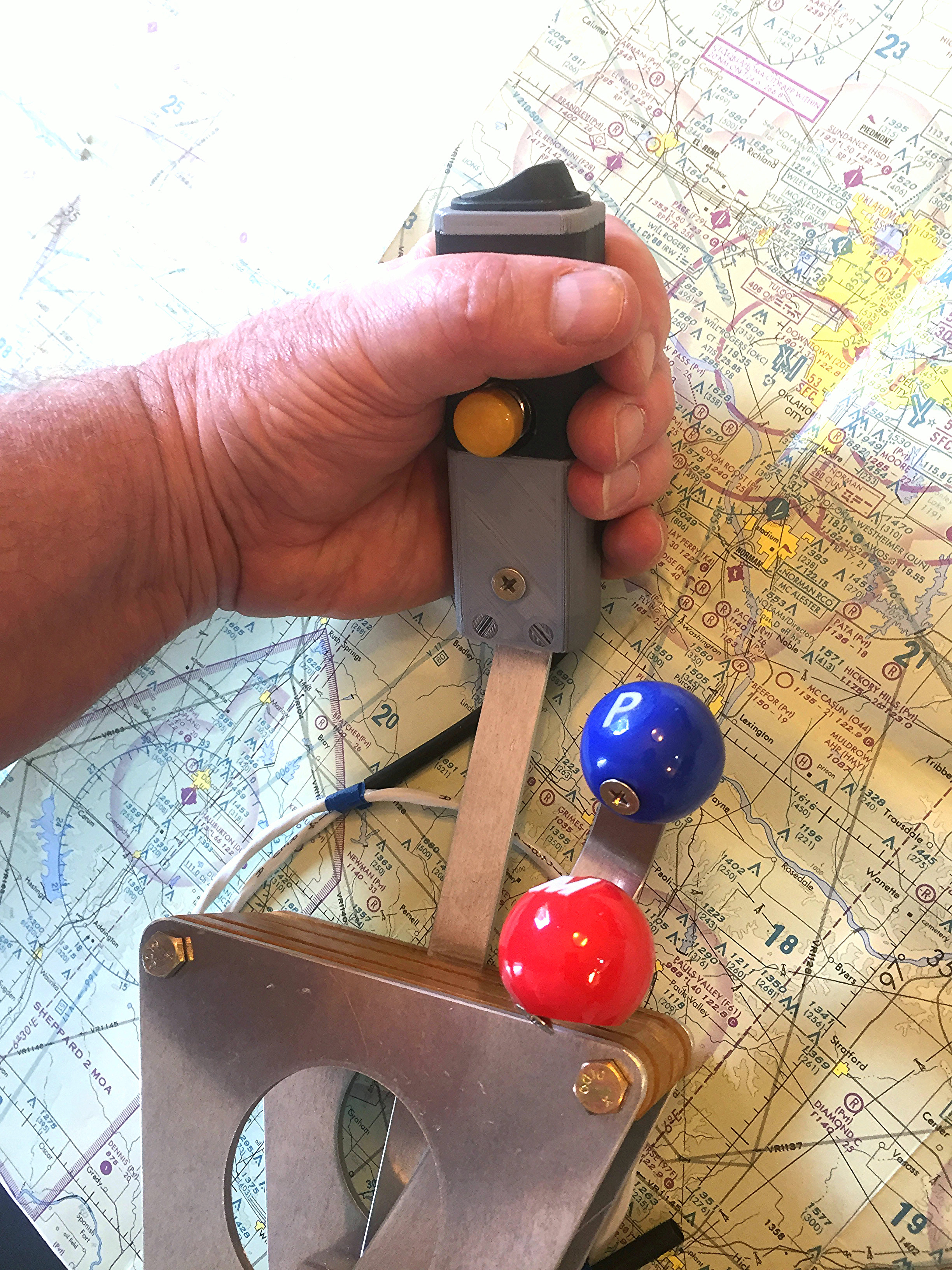

Shown within the pictures is the Throttle Grip installed on the VANs RV-4 CT-43F throttle quadrant. This sale is for the throttle grip and electronics only and is not sold with the throttle quadrant. Prop and Mixture spheres sold separately.
If you have any questions about this product, please ask.
