Made by a pilot for pilots, the “P- 51 Mustang” Throttle Grip with PTT is manufactured in the USA by Swearingen 3D works of Marion IA., packaged in the USA and distributed by the designer. Everything you order is prepared just for you, only after you order. Upon order, your configuration options are checked and incorporated, final assembly completed, and continuity checks performed to assure the value and performance I have designed for you.

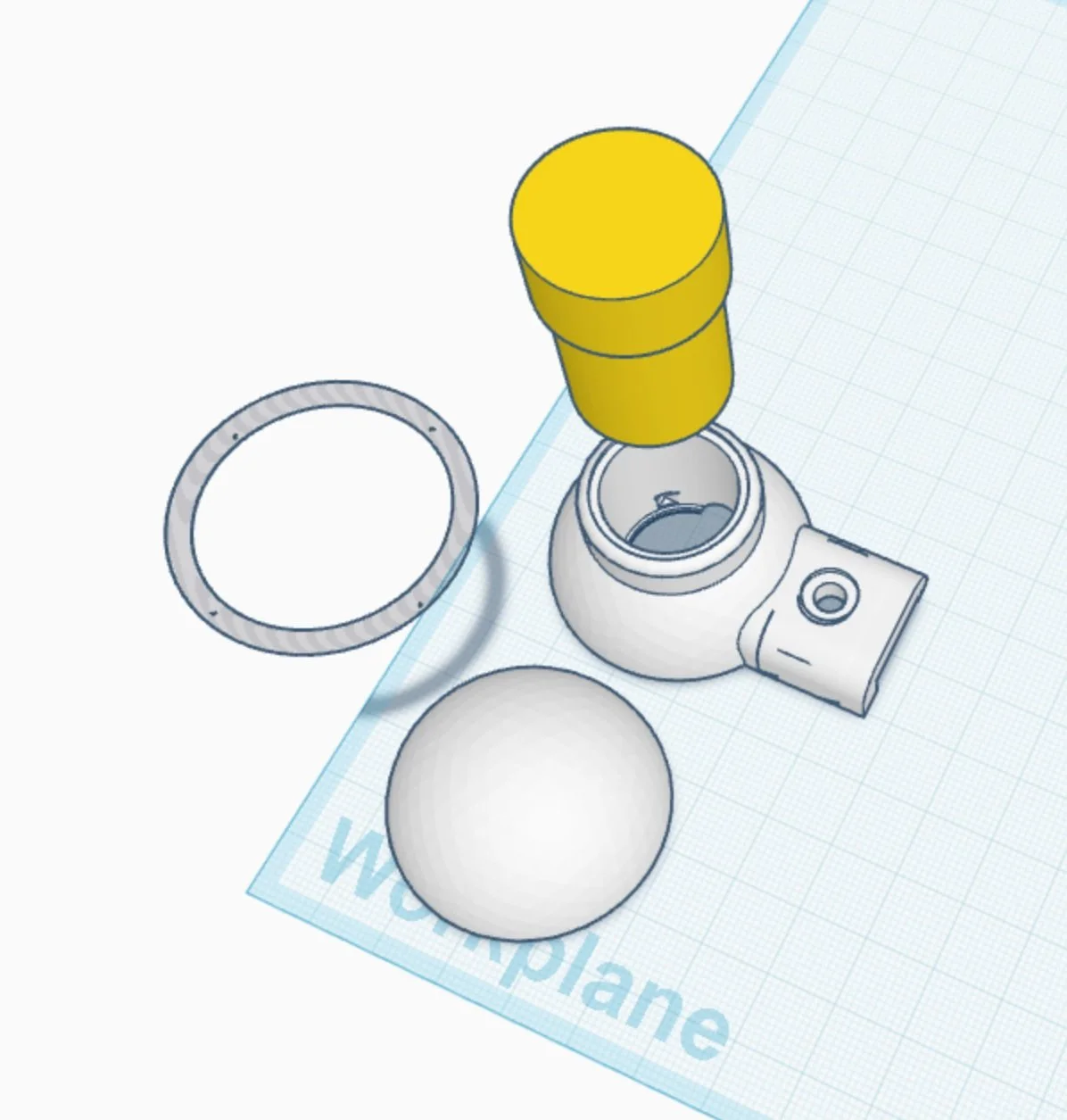

The throttle grip consists of a 1.6 inch 3D printed P-51 throttle sphere, scaled from North American engineering plans. The throttle grip has been made compatible with the Vans RV-3, -4, and -8 /8A throttle quadrants CT-42F, CT-43F and CT- 82F, 83F and 81R (as pictured). The throttle grip is sized to adequately clear the prop lever and PROP control ball while still retaining the throttle ergonomics of the original Vans throttle quadrant. The push-to-talk (PTT) switch is contained within the throttle grip, and is operated by the pad of the left-hand thumb.

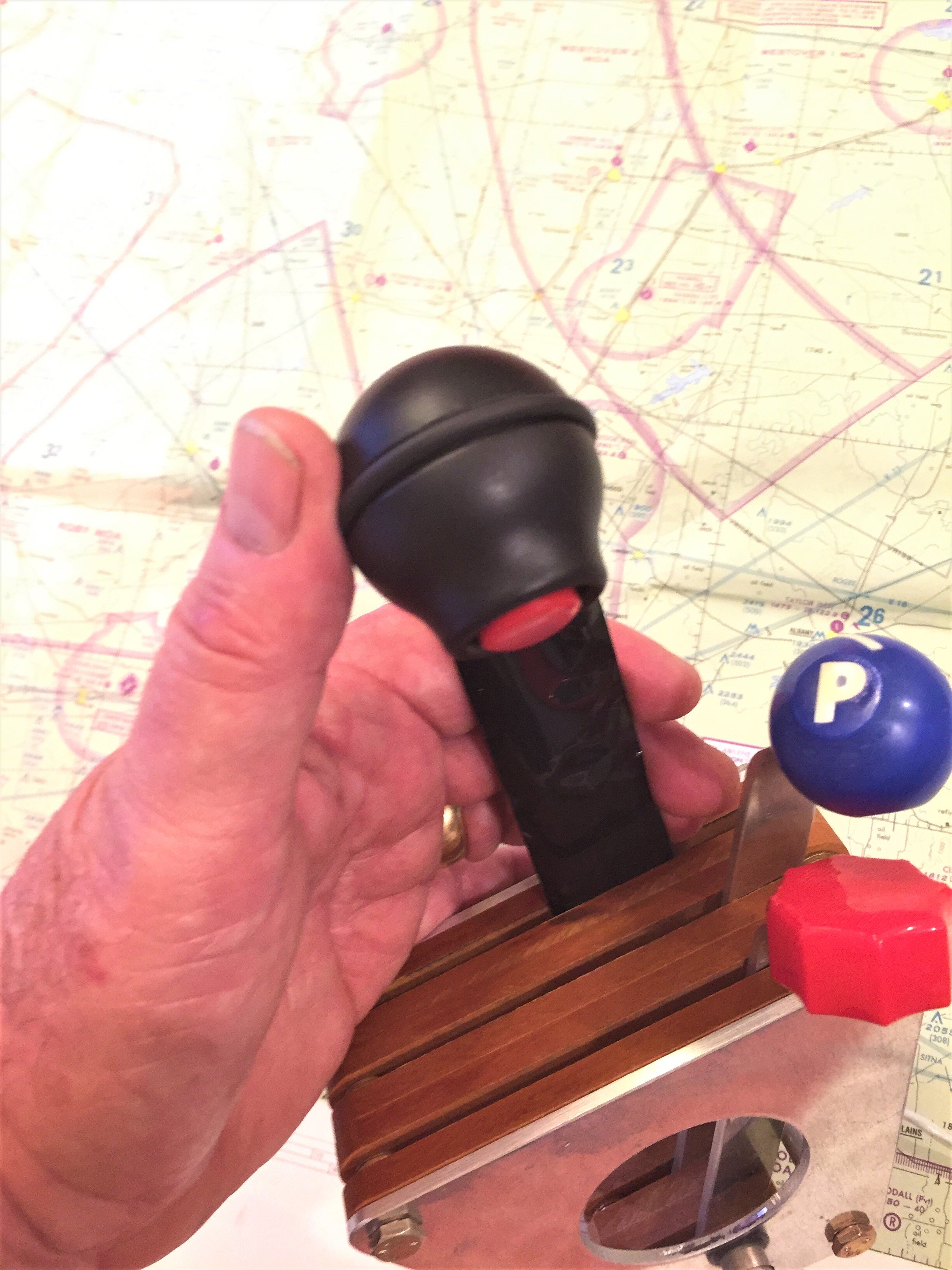

The Throttle Grip is available in two configurations to choose from. 1. The standard P-51 Sphere with high definition 3D silver finish or; 2. A military flat black UV cured urethane with a switch guard. This is a throttle grip that provides a remove and replace option to your CT series of Vans throttle quadrants. It comes complete with a functionally tested and wired PTT switch. (RV-4 CT-43F Throttle quadrant shown in pictures, not included in sale).

NOTE: Both the Mixture and Prop spheres are sold separately within the SHOP area of this site and function as options to your purchase of the P-51 Grip.

FEATURES

• P-51 Throttle Ball Grip Size: 1.6 in. (40mm) Diameter

• Compatible with 0.61 Inch width throttle quadrant levers. OEM lever end will require a slight modification to mount Throttle Ball..

• Weight:31 g.

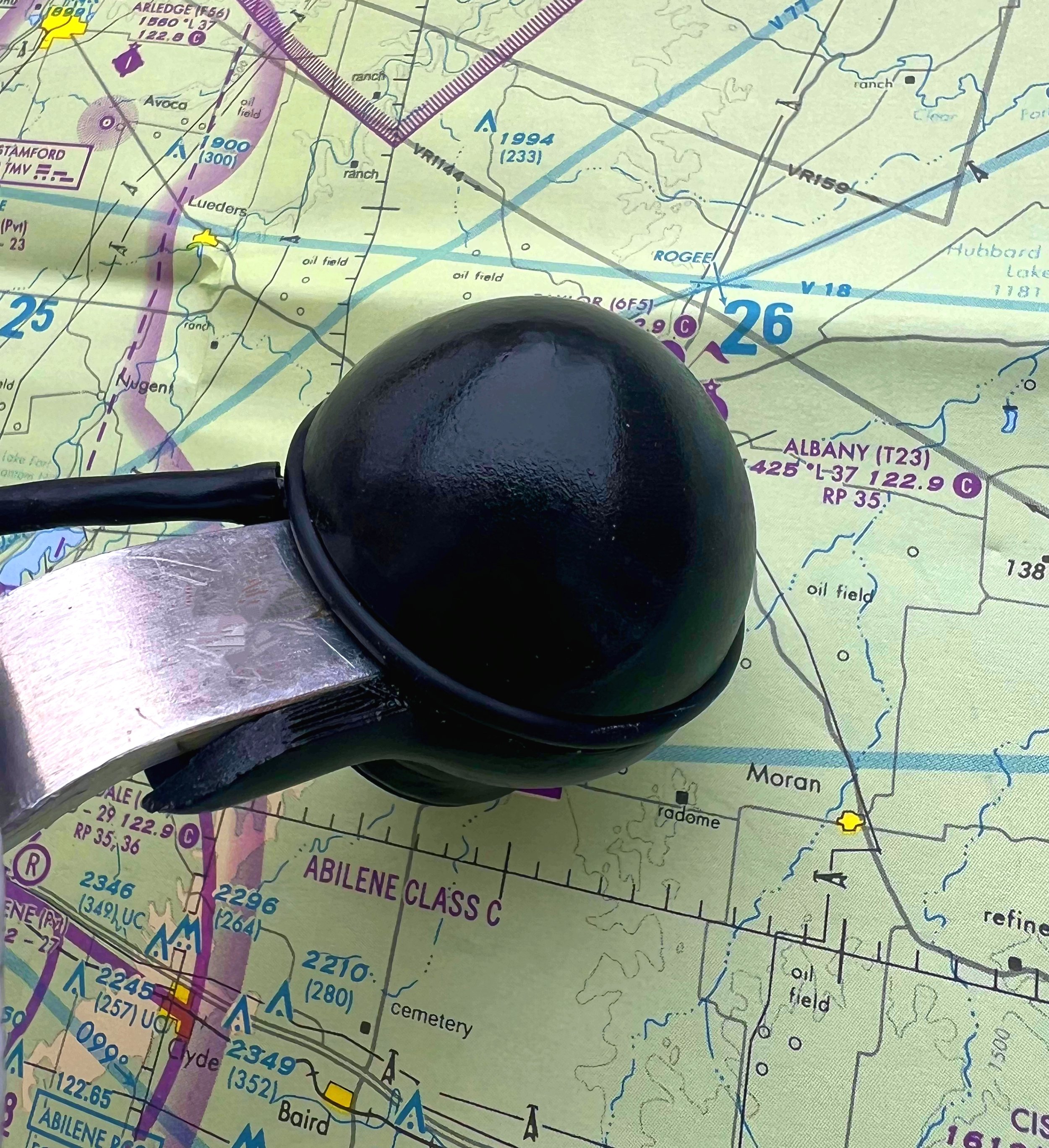

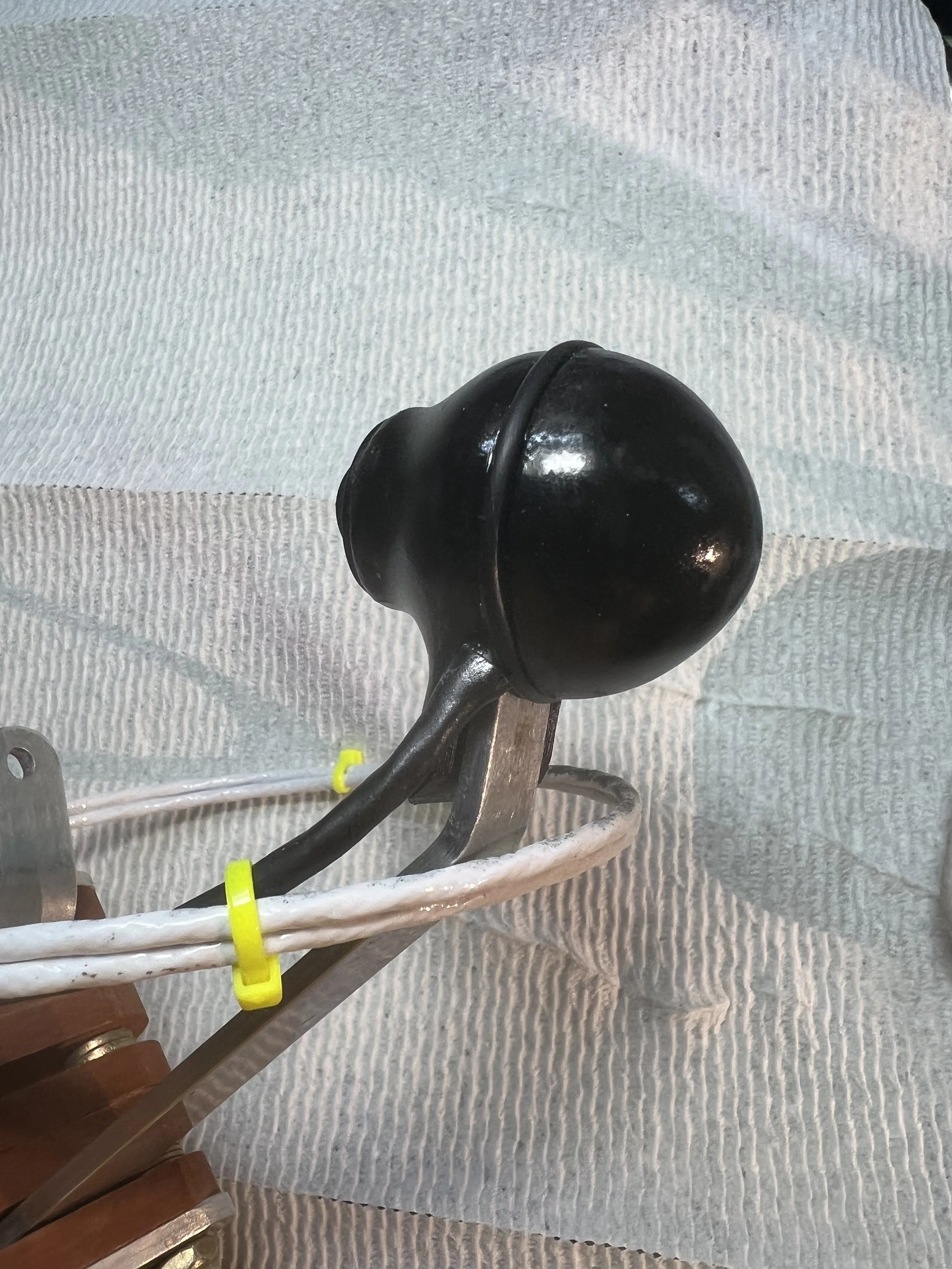

• The "P-51 Mustang" throttle sphere is made from tough ecologically friendly, 3D printer Silver PLA or as an option, inclusive of switch guard, finished in Black Military Flat.

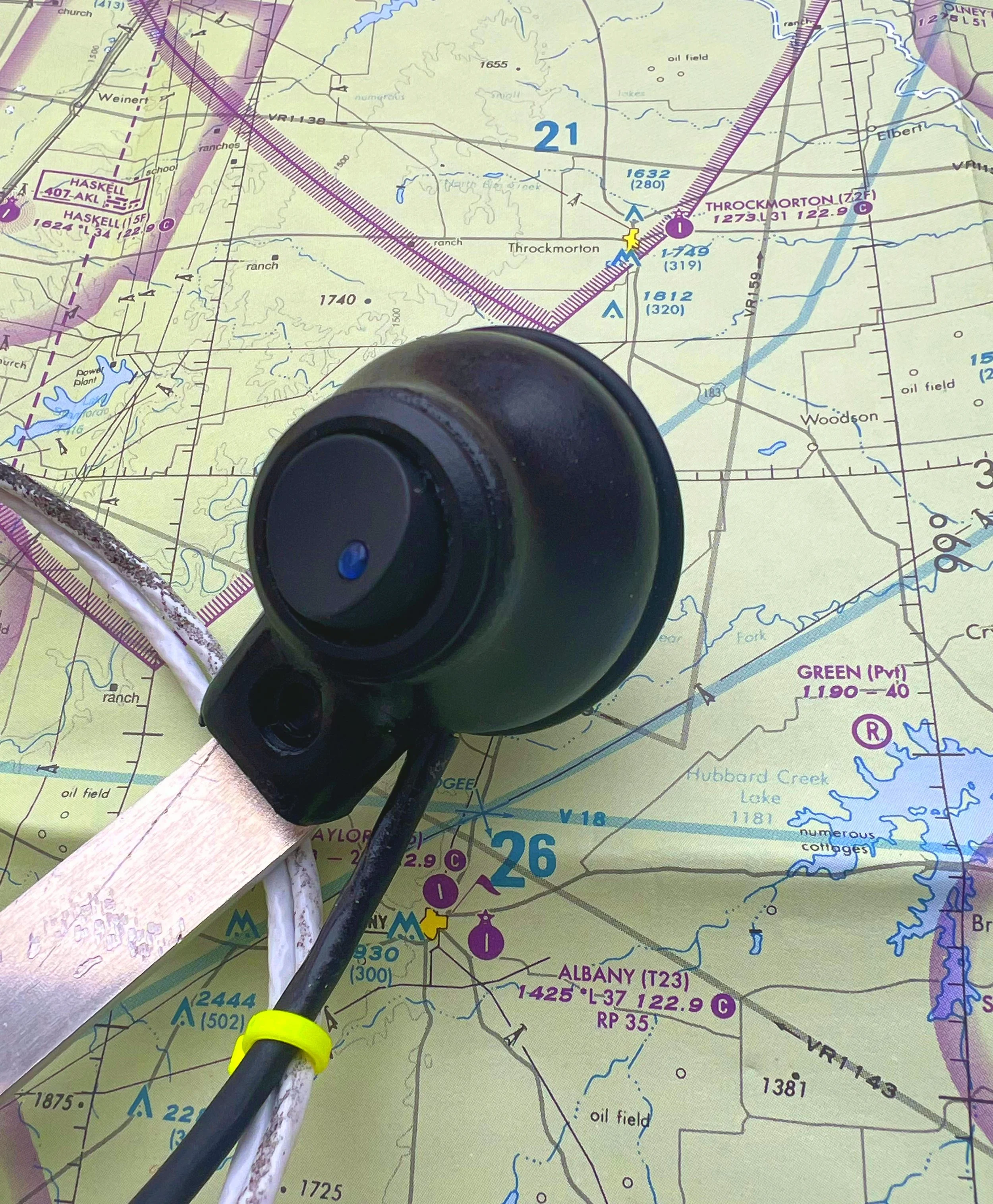

•  Throttle Ball contains a push-to-talk (PTT) switch, rated as follows:

        Voltage Rating: 12Vdc

           Current Rating: 5A

       Switch Type: SPST - NO,  Off-MOM On

          Tested Life: 10,000 cycles

           Temperature Rating: -20C to 80C

 PTT cover comes standard in yellow.

PTT switch is mounted within the Throttle ball, wired and provided with 20 inches of 22 AWG, Shielded TEFZEL, two conductor, functionally tested wire harness.

• Color schematic and instructions included for your cockpit installation.

• Condition: Mint, ready to plug and play.

• Terms and Conditions approval required prior to purchase

• Non-Smoker Manufacturing Facility

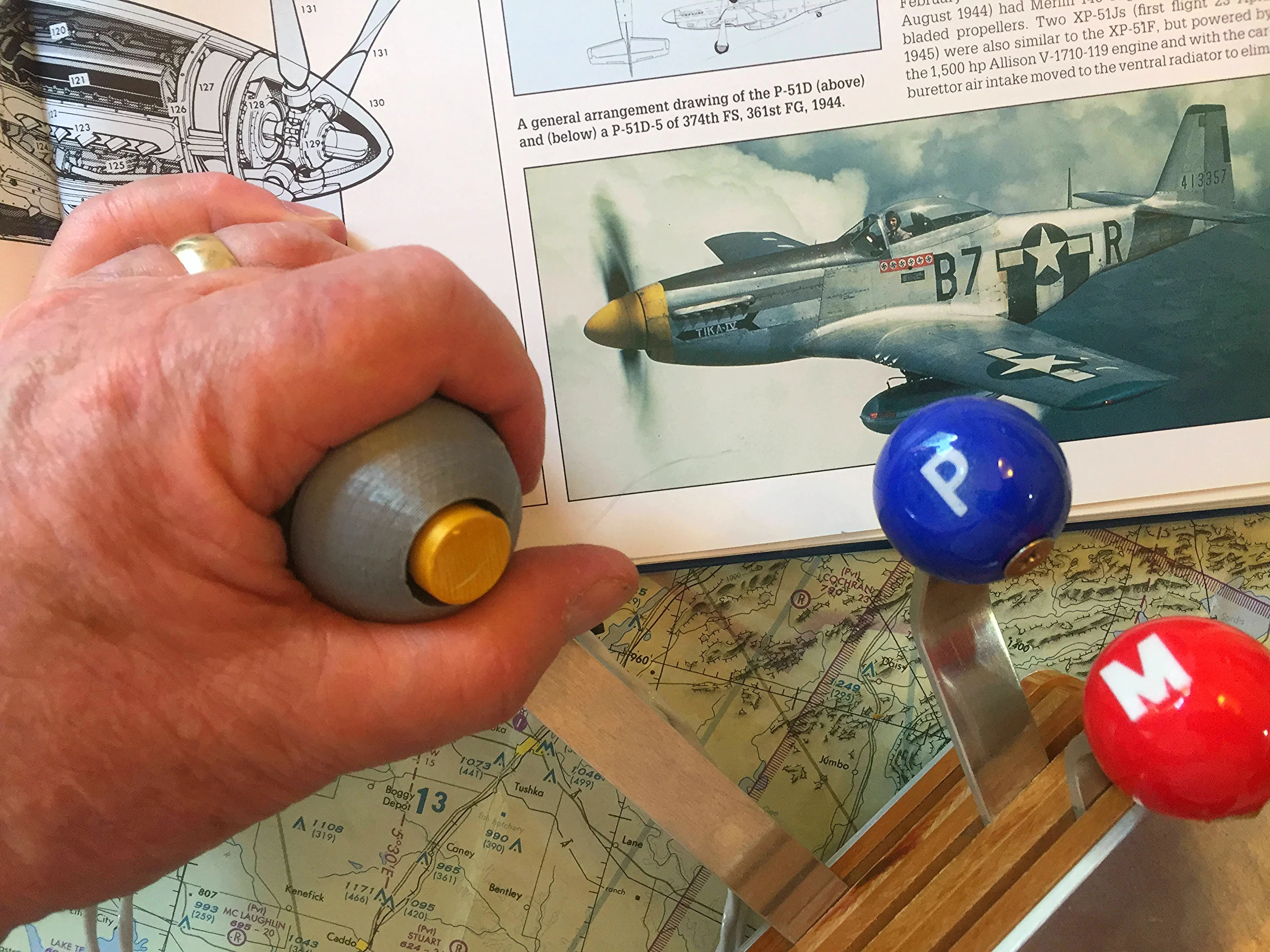

  Shown within the pictures is the Throttle Ball is installed on the Vans RV-4 CT-43F throttle quadrant. This sale is for the throttle grip and electronics only and is not sold with the throttle quadrant. Prop and Mixture spheres sold separately.

If a Right Hand “reverse image” grip is required, the same configuration can be arranged at the same price via the contact page.

If you have any questions about this product, please ask.
